OEM Capabilities – Pinnacle Manufacturing, Inc.

Responsive, Quality Oriented, Competitive Pricing

Whether small or large volume, Pinnacle Manufacturing provides the responsiveness, quality and competitive pricing you need to satisfy your customers.

Our services include:

Design Assistance

  • Part specification
  • Design assistance
  • Value engineering
  • Alloy selection
  • Tooling design, building and maintenance

Casting, Machining & Finishing

  • Die casting of parts up to seven (7) pounds
  • Multiple aluminum and zinc alloys available
  • Trimming
  • Vibratory finishing – ceramic, stone, steel
  • Steel ball burnishing
  • Shot blasting
  • Drilling & tapping
  • Tapping
  • Finish grinding
  • Powder Coat
  • E-coat
  • Chromate
  • Anodizing

Other Services

  • Assembly
  • Bar code or custom labeling
  • Custom packaging
  • Inventory management
  • JIT (Just-in-Time) shipments

Equipment List

Aluminum Casting Equipment

  • One – 350 Ton DC 350R Toshiba
  • One – 700 Ton Lester DMC
  • Three – 600 Ton Lester DMC
  • One – 400 Ton Lester DMC

Zinc Casting Equipment

  • Two – 400 Ton Cast Master DMC
  • One – 125 Ton Lester DMC
  • Five – 200 Ton Lester DMC

Trimming Equipment

  • Four – 28 Ton Hannifin
  • Two – 28 Ton KR Wilson
  • Two – 18 Ton KR Wilson
  • Two – 15 Ton WSM
  • One – 12 Ton Hannifin
  • One – 12 Ton PH

Machining Equipment

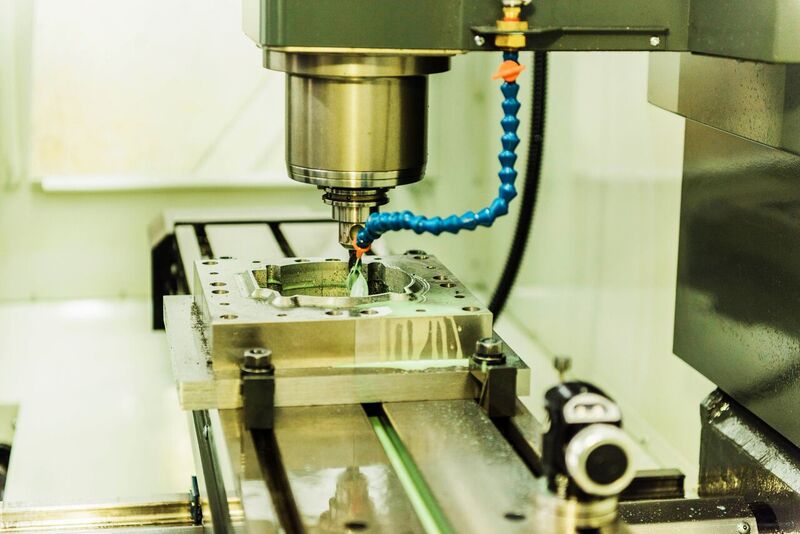

  • One – Haas TM2 CNC
  • One – Trak DPM with Proto Trak MX3 CNC
  • One – EZ Trak DX II CNC
  • One – Clausing 20 Lathe with auto-feed and digital readout
  • Two – Bridgeport Mills
  • One – Willis Wet Surface Grinder
  • One – Brown & Sharpe Surface Grinder
  • One – TPR-820 Radial Drill
  • Six – Solberga Drill and Tap Presses
  • One – Allen Drill Press
  • Zaggar Specialty Drill and Tap Heads
  • One – Sodick Mark XI Wire EDM
  • Various Welding Capabilities

Finishing Equipment

  • One – 4 cu. ft. Roto-finish Spirotron
  • One – 4 cu. ft. SWECO Vibratron setup for Steel Burnishing
  • One – 6 cu. ft. Vibratory Tub – Option of stone, ceramic, steel media
  • One – Goff Steel Shot Blaster
  • One – Dayton Glass Bead Blaster

Quality Control

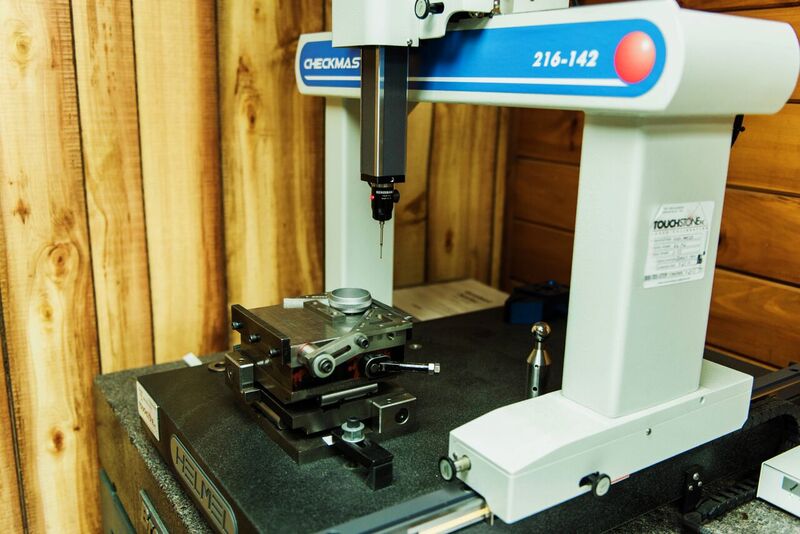

  • CMM Helmel Checkmaster 216-142
  • Amscope with Camera
  • Mitutoyo Digital Height Gauges and Micrometers
  • Brown & Sharpe Indicators
  • Various Gauge Blocks and Pins

Software

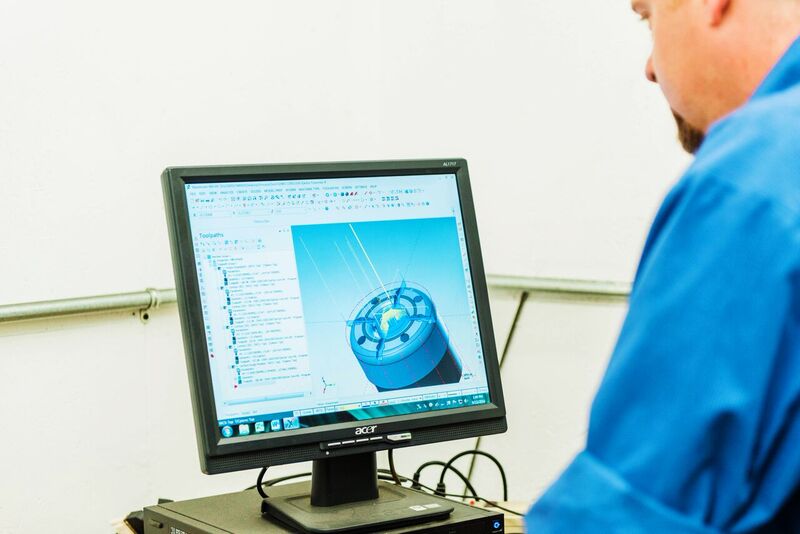

  • Mastercam
  • Numerous CAD file formats accepted
Request a Quotation or Call 585-343-5664
